| Size | DN25 - DN200 |
| Body Material |
Cast Iron, Cast Steel |
Valve Core Material |
SS304 |
Valve Opening |
0 - 100% |
Communication |
4G, LoRa, NB-IoT, M-Bus, RS-485 |
Working Pressure |
1.6 MPa, 2.5MPa |
Connection |
Flanged, Welded |
| Power Supply | Lithium Battery 3.6V / DC24V |
Ambient Temp. Range |
-40°C to 130°C |
It is easy to achieve to control with high accuracy.
It is simple structure, small volume to save space.
The advanced materials are used in the valve body and valve core to ensure the long lifespan.
It can be operated by automatic or manual.
Electric regulating valve is suitable for accurate flow control in district heating and cooling, HVAC and central heating systems, the features are stable running, low noise and Zero fluid leakage.
Electric regulating valve is suitable for accurate flow control in district heating and cooling, HVAC and central heating systems, the features are stable running, low noise and Zero fluid leakage.
Electric butterfly valve has multi options for power source, such as lithium battery 3.6V and DC24V, the control signals wireless remote transmission, reduce wiring costs. The communication methods are possible for 4G, LoRa, NB-IoT, M-Bus and RS-485.

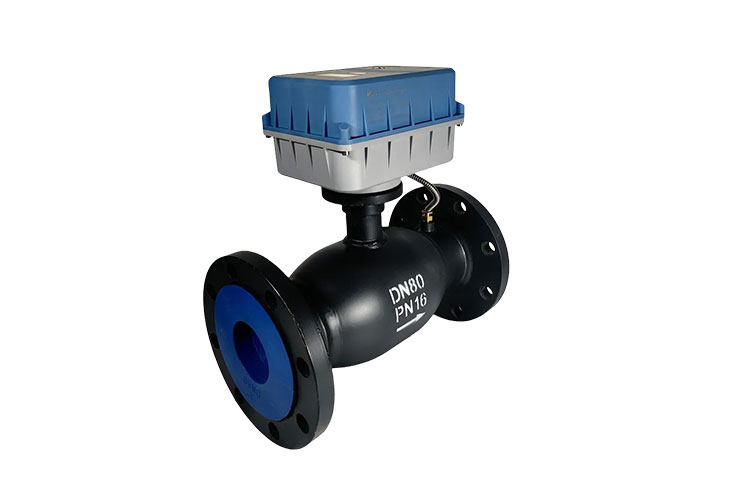

Electric balance ball valve is one type intelligent and smart valve, after setting the relevant parameters ( such as, return water temperature, temperature difference between supply and return water, the valve opening, time-sharing control ), it will be in running with self-monitoring and automatic control.
